Aluminium Box Beams
What is a Box Beam?
In heavier duty applications where standard Aluminium Scaffold Beams aren't substantial enough, Apollo Scaffold Services have created a range of Box Beams which all offer the following benefits:
- Manufactured in Britain from 6082 T6 extruded aluminium
- T.I.G welded (by welders coded to BSEN 287 Pt2 92AI/97 EN30042)
- Conforms to BS 8118 and BS EN 1999-1-1
- Independent consulting engineers reports
- Monthly proof load testing of random sample beams to ensure consistent quality
- Easy to transport and handle
- Reduced labour and installation time
- Nationwide carriage and delivery

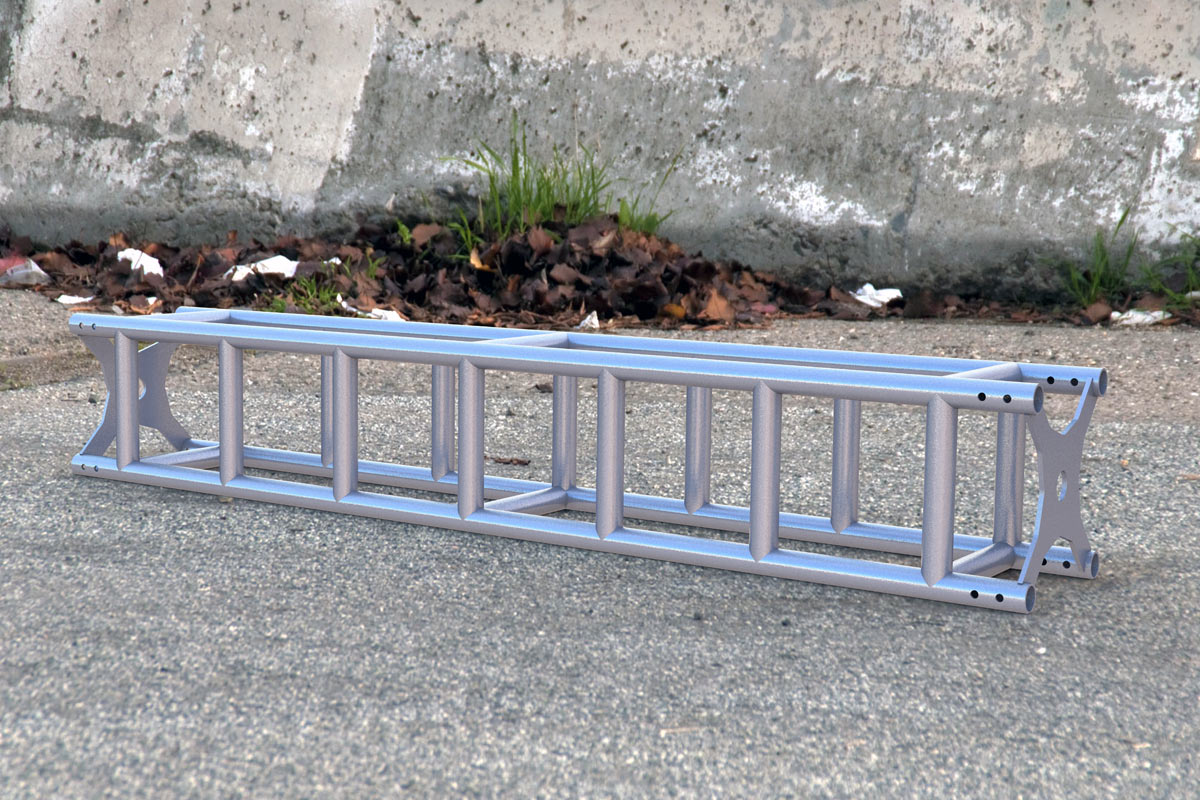

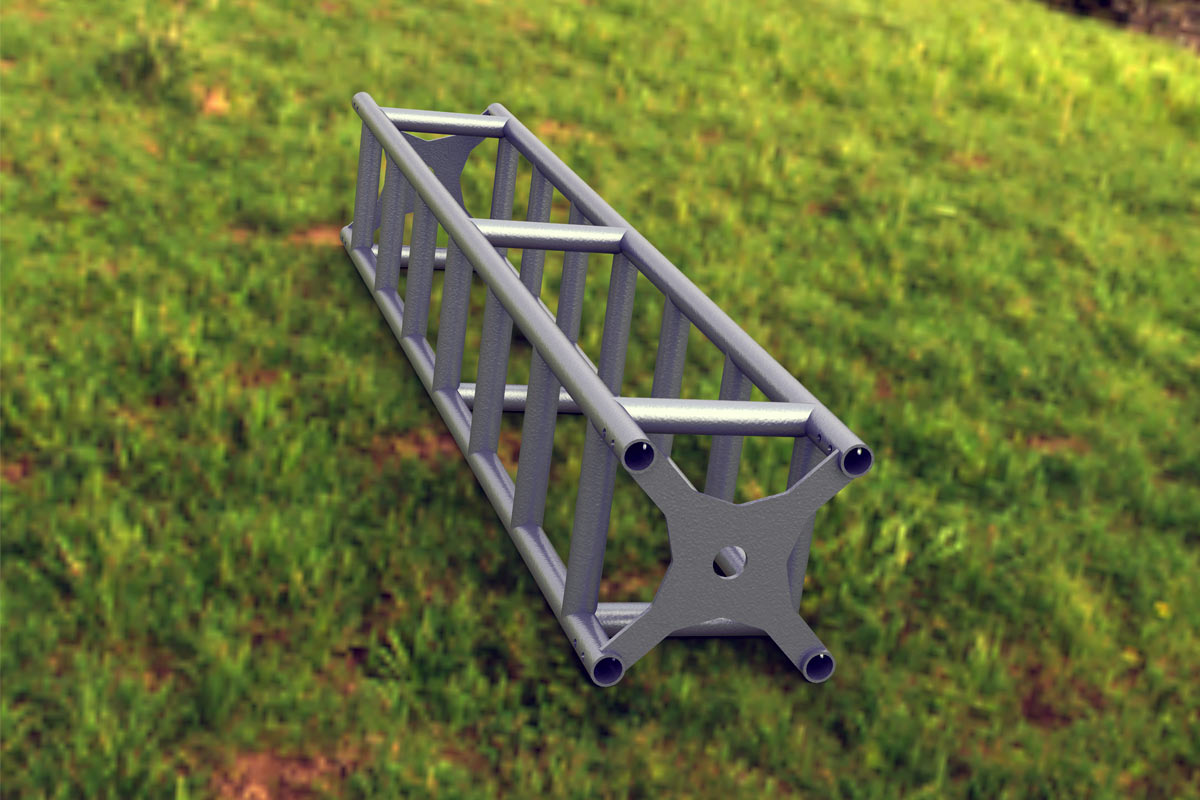

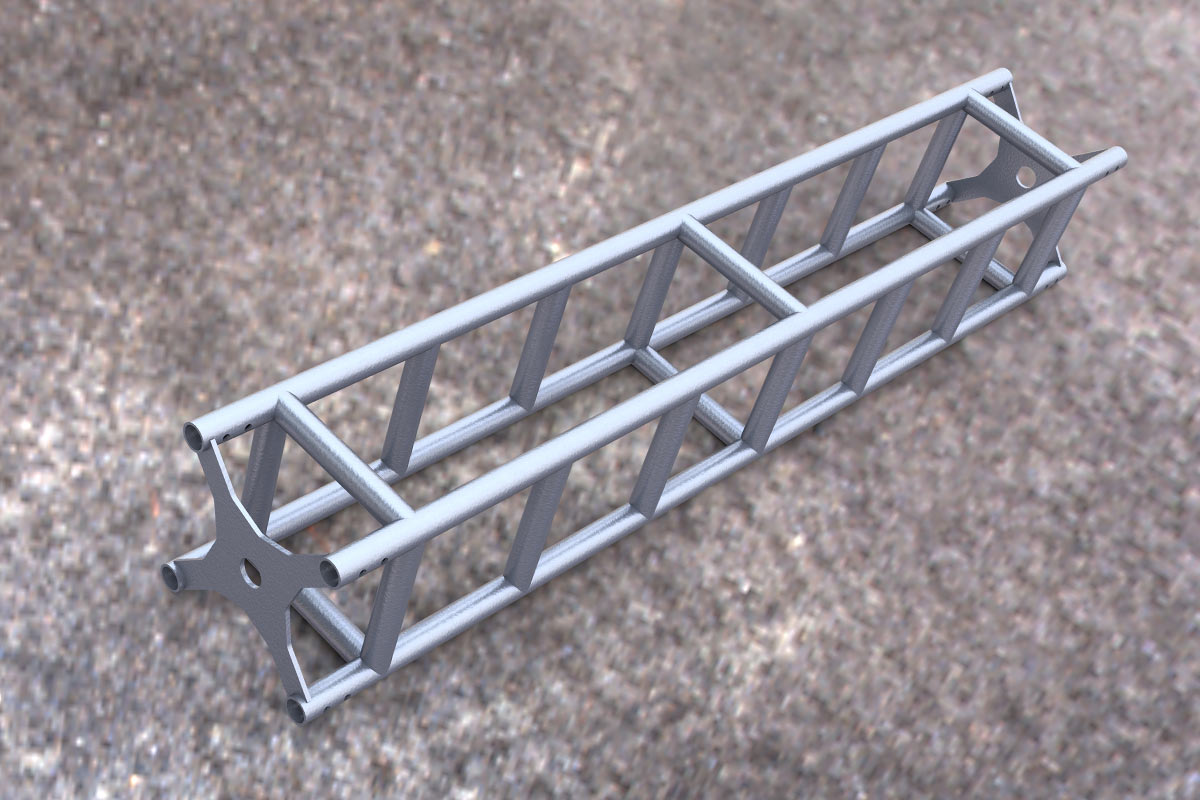

353mm Ladder Beam Box
- Overall depth - 353mm (12" centres) (standard ladder beam width)
- Standard lengths: 610mm - 7930mm
- Self weight 13kg/m
- 48.3mm x 4.47mm wall thickness grade 6082 T6 aluminium
Technical Documents

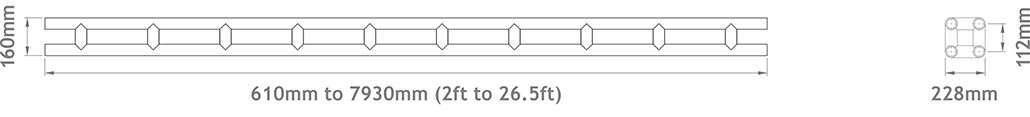

160mm Ladder Beam Box
- Overall depth - 160mm (4.4" centres)
- Standard lengths: 610mm - 7930mm
- Self weight 13kg/m
- 48.3mm x 4.47mm wall thickness grade 6082 T6 aluminium
Technical Documents
160mm Ladder Beam Box Calculation
160mm Ladder Beam Box Capacity Sheet
160mm Ladder Beam Box Cantilevered Lifting Beam Calculation

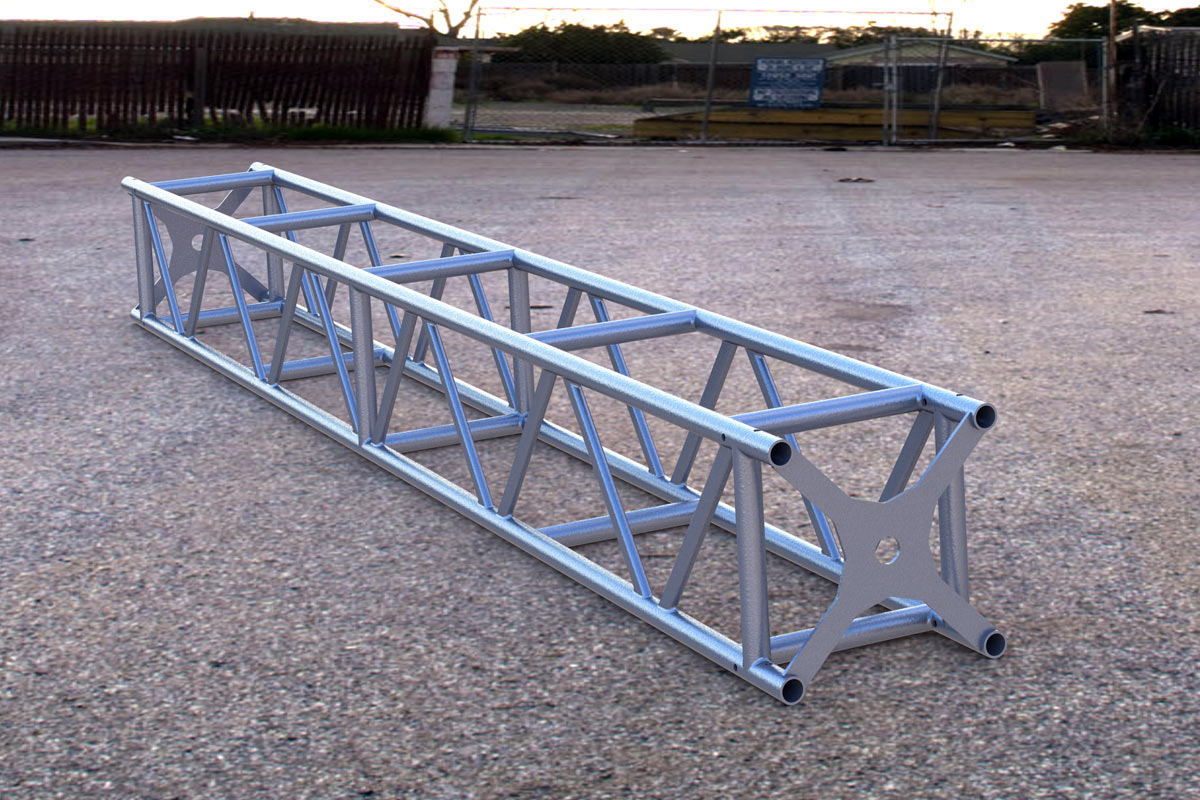

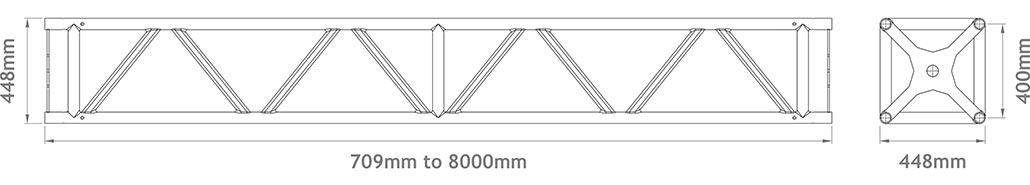

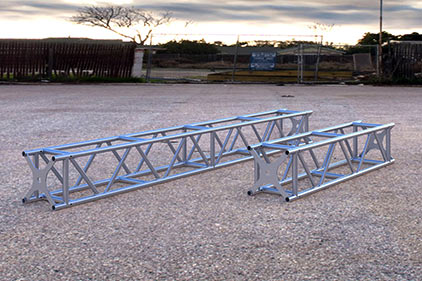

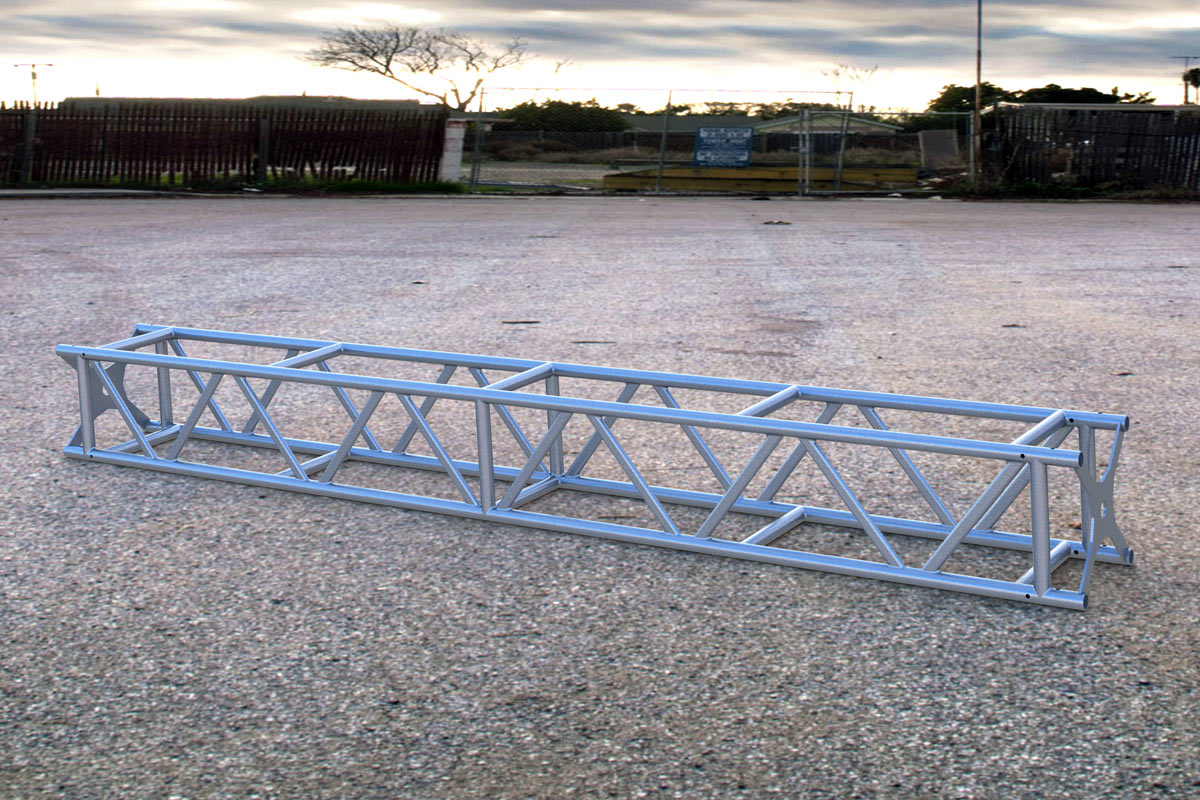

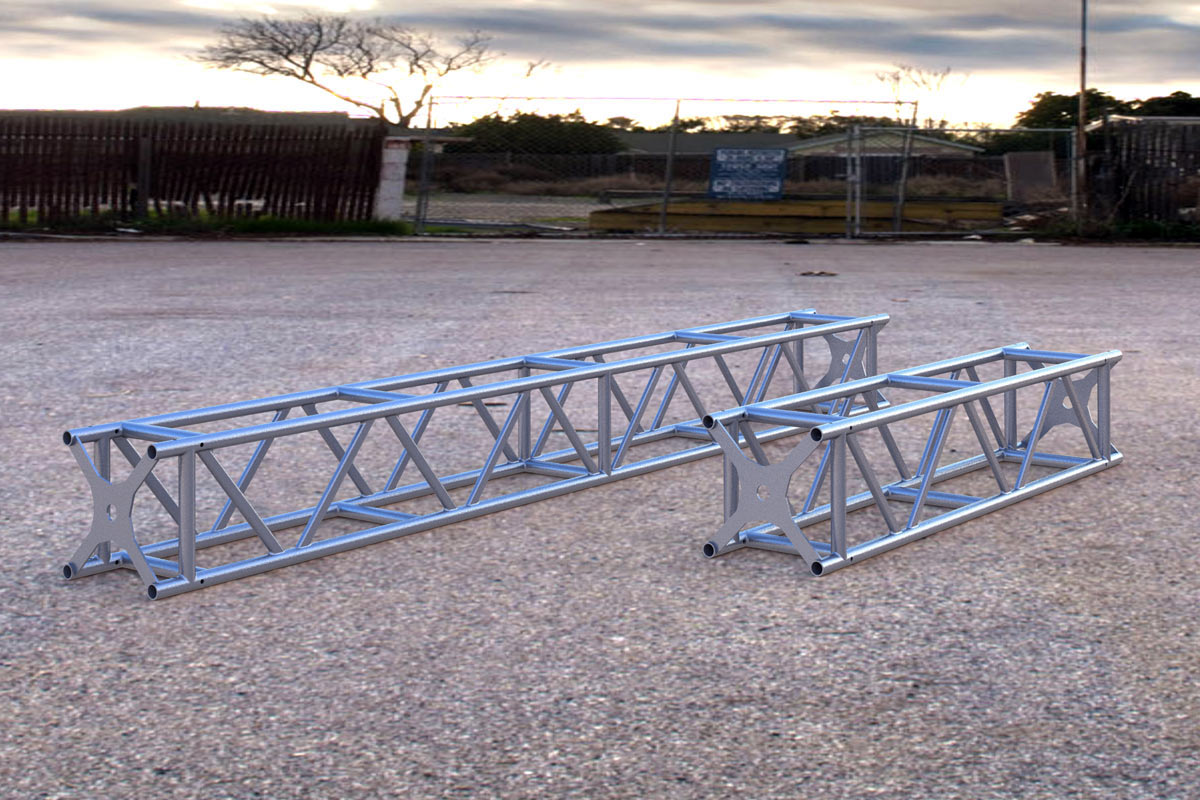

Lattice Beam Box
- Standard lengths: 709mm - 8000mm
- Non-standard lengths made to order (e.g. 19ft 6” for shipping containers)
- Self weight 9.4kg/m
- Massive strength to weight ratio - incorporates extruded oval crossmembers
Technical Documents

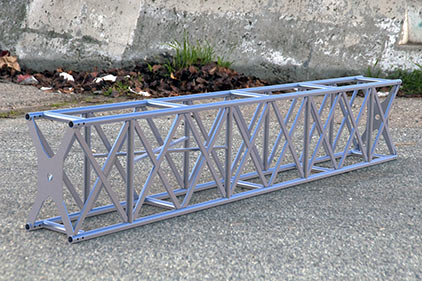

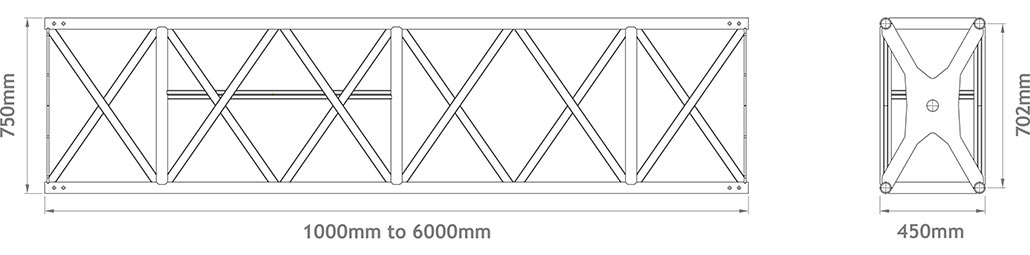

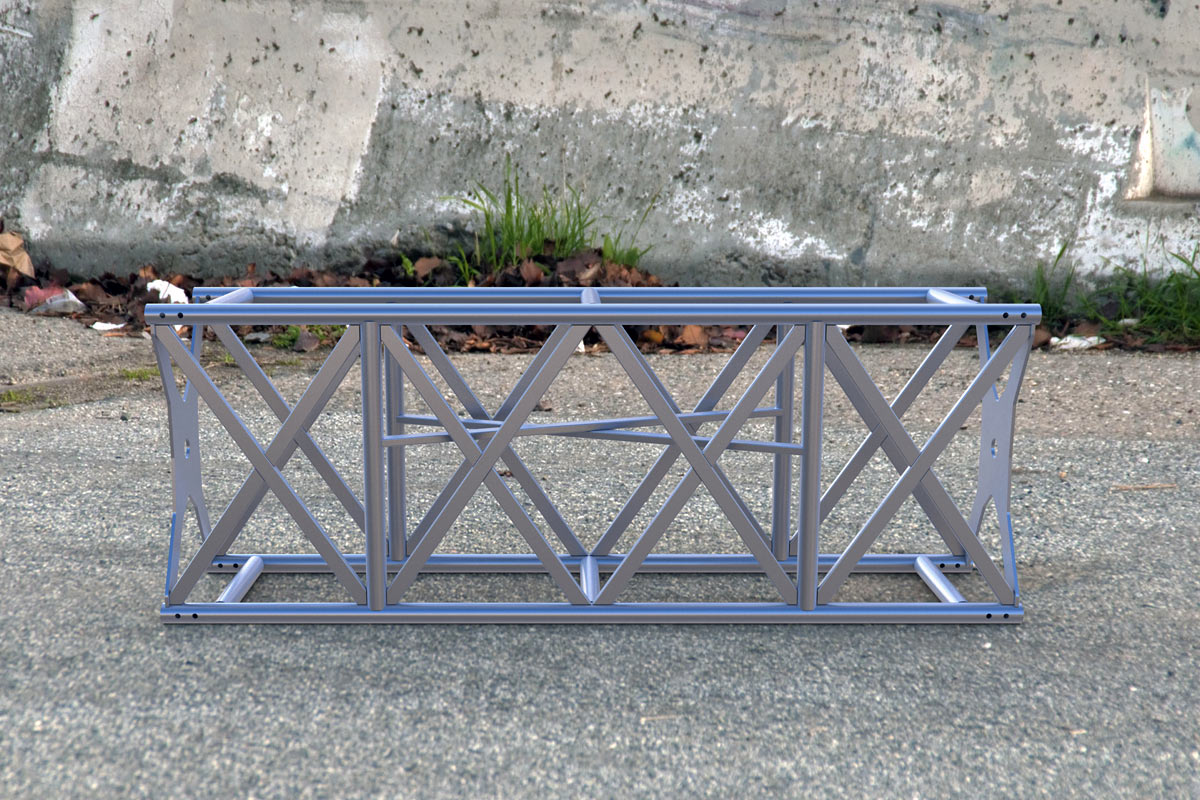

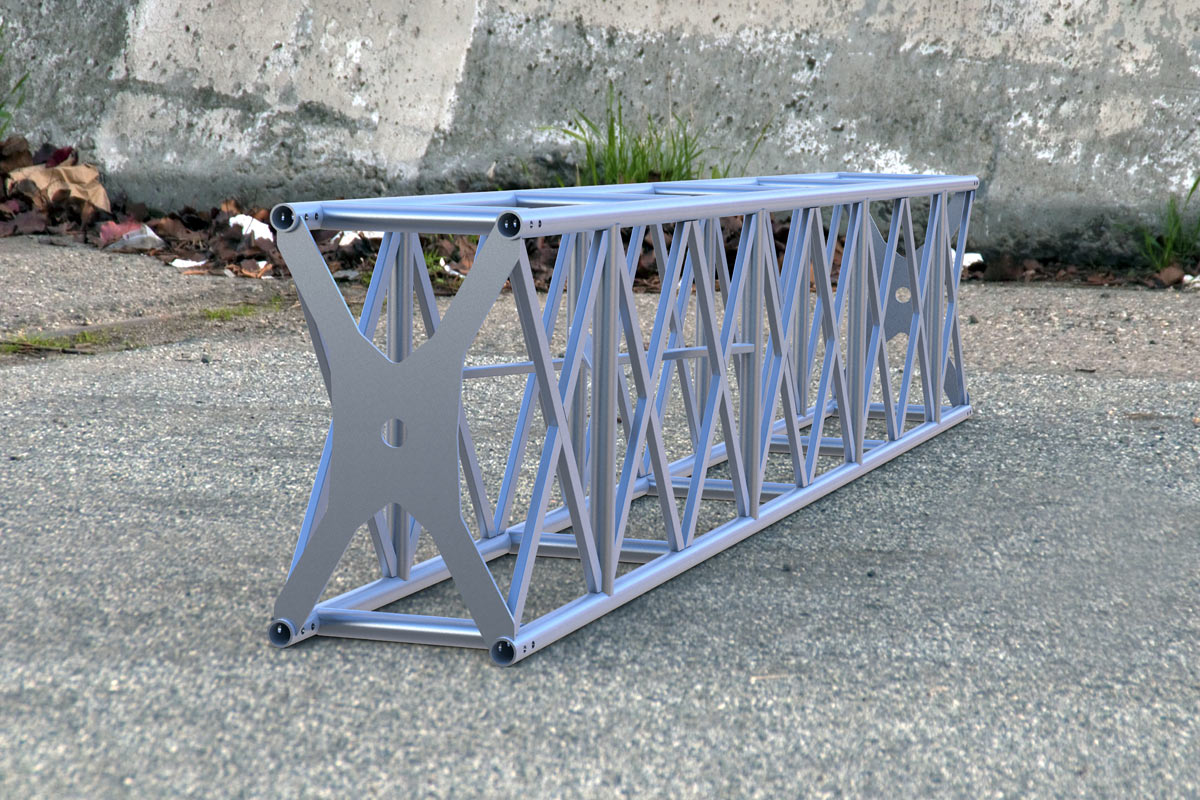

750mm X-Beam Box
-
Fewer beams required per job
- Larger spans for less money
- Lengths of 1, 2, 3, 4, 5 and 6 metres available
- Self weight 18kg/m
Technical Documents
Designed and manufactured in Britain using only British sourced aluminium, Apollo Scaffold Services can supply Box Beams nationwide, please contact us for further information, prices and availability.
Take a look at the images below to see the full capabilities of Box Beams manufactured and supplied by Scaffold Services.
